Determining object color with OpenCV

determining_object_color_result

This is the final post in our three part series on shape detection and analysis.

Previously, we learned how to:

  1. Compute the center of a contour
  2. Perform shape detection & identification

Today we are going to perform both shape detection and color labeling on objects in images.

At this point, we understand that regions of an image can be characterized by both color histograms and by basic color channel statistics such as mean and standard deviation.

But while we can compute these various statistics, they cannot give us an actual label such as “red”, “green”, “blue”, or “black” that tags a region as containing a specific color.

…or can they?

In this blog post, I’ll detail how we can leverage the L*a*b* color space along with the Euclidean distance to tag, label, and determine the color of objects in images using Python and OpenCV.

Determining object color with OpenCV

Before we dive into any code, let’s briefly review our project structure:

Notice how we are reusing the shapedetector.py  and ShapeDetector  class from our previous blog post. We’ll also create a new file, colorlabeler.py , that will be used to tag image regions with a text label of a color.

Finally, the detect_color.py  driver script will be used to glue all the pieces together.

Before you continue working through this post, make sure that you have the imutils Python package installed on your system:

We’ll be using various functions inside this library through the remainder of the lesson.

Labeling colors in images

The first step in this project is to create a Python class that can be used to label shapes in an image with their associated color.

To do this, let’s define a class named ColorLabeler  in the colorlabeler.py  file:

Line 2-5 imports our required Python packages while Line 7 defines the ColorLabeler  class.

We then dive into the constructor on Line 8. To start, we need to initialize a colors dictionary (Lines 11-14) that specifies the mapping of the color name (the key to the dictionary) to the RGB tuple (the value of the dictionary).

From there, we allocate memory for a NumPy array to store these colors, followed by initializing the list of color names (Lines 18 and 19).

The next step is to loop over the colors  dictionary, followed by updating the NumPy array and the colorNames  list, respectively (Lines 22-25).

Finally, we convert the NumPy “image” from the RGB color space to the L*a*b* color space.

So why are we using the L*a*b* color space rather than RGB or HSV?

Well, in order to actually label and tag regions of an image as containing a certain color, we’ll be computing the Euclidean distance between our dataset of known colors (i.e., the lab  array) and the averages of a particular image region.

The known color that minimizes the Euclidean distance will be chosen as the color identification.

And unlike HSV and RGB color spaces, the Euclidean distance between L*a*b* colors has actual perceptual meaning — hence we’ll be using it in the remainder of this post.

The next step is to define the  label  method:

The label  method requires two arguments: the L*a*b* image  containing the shape we want to compute color channel statistics for, followed by c , the contour region of the image  we are interested in.

Lines 34 and 35 construct a mask for contour region, an example of which we can see below:

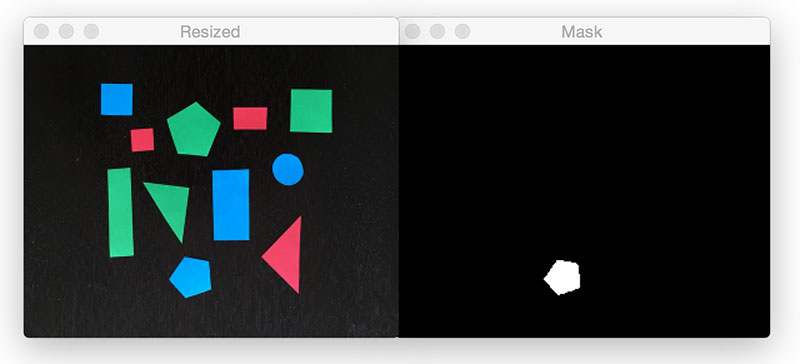

Figure 1: (Right) The original image. (Left) The mask image, indicating that we will only perform computations in the "white" region of the image, ignoring the black background.

Figure 1: (Right) The original image. (Left) The mask image for the blue pentagon at the bottom of the image, indicating that we will only perform computations in the “white” region of the image, ignoring the black background.

Notice how the foreground region of the mask  is set to white, while the background is set to black. We’ll only perform computations within the masked (white) region of the image.

We also erode the mask slightly to ensure statistics are only being computed for the masked region and that no background is accidentally included (due to a non-perfect segmentation of the shape from the original image, for instance).

Line 37 computes the mean (i.e., average) for each of the L*, a*, and *b* channels of the image for only the mask ‘ed region.

Finally, Lines 43-51 handles looping over each row of the lab  array, computing the Euclidean distance between each known color and the average color, and then returning the name of the color with the smallest Euclidean distance.

Defining the color labeling and shape detection process

Now that we have defined our ColorLabeler , let’s create the detect_color.py  driver script. Inside this script we’ll be combining both our ShapeDetector  class from last week and the ColorLabeler  from today’s post.

Let’s go ahead and get started:

Lines 2-6 import our required Python packages — notice how we are importing both our ShapeDetector  and ColorLabeler .

Lines 9-12 then parse our command line arguments. Like the other two posts in this series, we only need a single argument: the image  path where the image we want to process lives on disk.

Next up, we can load the image and process it:

Lines 16-18 handle loading the image from disk and then creating a resized  version of it, keeping track of the ratio  of the original height to the resized height. We resize the image so that our contour approximation is more accurate for shape identification. Furthermore, the smaller the image is, the less data there is to process, thus our code will execute faster.

Lines 22-25 apply Gaussian smoothing to our resized image, converting to grayscale and L*a*b*, and finally thresholding to reveal the shapes in the image:

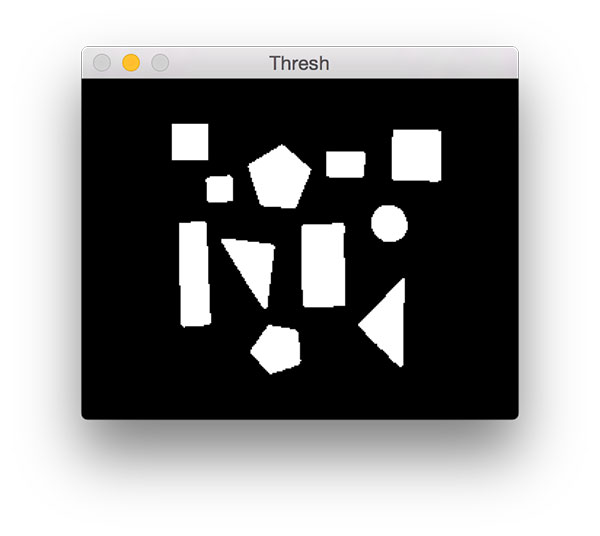

Figure 2: Thresholding is applied to segment the background from the foreground shapes.

Figure 2: Thresholding is applied to segment the background from the foreground shapes.

We find the contours (i.e., outlines) of the shapes on Lines 29-30, taking care of to grab the appropriate tuple value of cnts  based on our OpenCV version.

We are now ready to detect both the shape and color of each object in the image:

We start looping over each of the contours on Line 38, while Lines 40-42 compute the center of the shape.

Using the contour, we can then detect the shape  of the object, followed by determining its color  on Lines 45 and 46.

Finally, Lines 51-57 handle drawing the outline of the current shape, followed by the color + text label on the output image.

Lines 60 and 61 display the results to our screen.

Color labeling results

To run our shape detector + color labeler, just download the source code to the post using the form at the bottom of this tutorial and execute the following command:

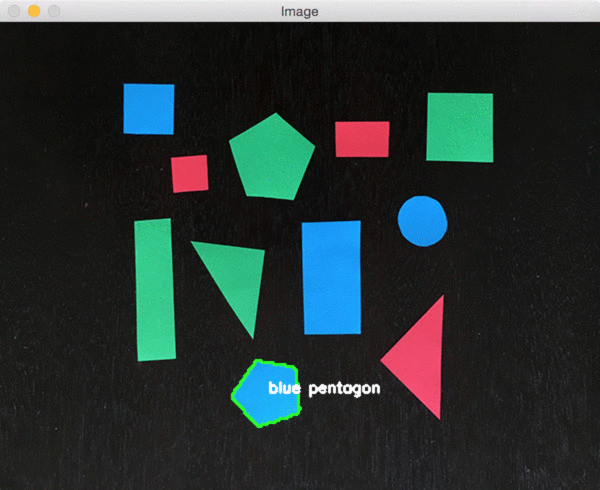

determining_object_color_result

Figure 3: Detecting the shape and labeling the color of objects in an image.

As you can see from the GIF above, each object has been correctly identified both in terms of shape and in terms of color.

Limitations

One of the primary drawbacks to using the method presented in this post to label colors is that due to lighting conditions, along with various hues and saturations, colors rarely look like purered, green, blue, etc.

You can often identify small sets of colors using the L*a*b* color space and the Euclidean distance, but for larger color palettes, this method will likely return incorrect results depending on the complexity of your images.

So, that being said, how can we more reliably label colors in images?

Perhaps there is a way to “learn” what colors “look like” in the real-world.

Indeed, there is.

And that’s exactly what I’ll be discussing in a future blog post.

Summary

Today is the final post in our three part series on shape detection and analysis.

We started by learning how to compute the center of a contour using OpenCV. Last week we learned how to utilize contour approximation to detect shapes in images. And finally, today we combined our shape detection algorithm with a color labeler, used to tag shapes a specific color name.

While this method works for small color sets in semi-controlled lighting conditions, it will likely not work for larger color palettes in less controlled environments. As I hinted at in the “Limitations” section of this post, there is actually a way for us to “learn” what colors “look like” in the real-world. I’ll save the discussion of this method for a future blog post.
